Troubleshoot WA student registration and demographics (SIRS/SRGDG) configurations

Modified on Sun, 15 Feb at 11:48 PM

TABLE OF CONTENTS

Introduction
Configure Zunia for SIRS/SRGDG Western Australia
Tips

Introduction

The School Curriculum and Standards Authority requires schools in Western Australia to submit demographic data on all students from Kindergarten to Year 12.

Use this guide to troubleshoot configurations to provide the right data for student registration and demographics (SIRS/SRGDG).

When all the mandatory fields are configured correctly, the export file will be available to download and submit to the School Curriculum and Standards.

Configure Zunia for SIRS/SRGDG Western Australia

Column	Heading	Requirement	Zunia configuration
A	Record type	Mandatory	This field will always be populated with a value of SRGDG.
B	Provider code (4-digit school code)	Mandatory	This field is defined using Government School Code field on the School Details tab and has a maximum of 10 characters.
C	Calendar year	Mandatory	This field will automatically populate rows with the current year in YYYY format.
D	Western Australian student number (WASN)	Optional	This field is defined using the Government Student ID field on the Identity tab of Student Profile.
E	Student title	Optional	This value is defined using the Personal Information > Title stored on the Profile tab of Student Profile and has a maximum length of 20 characters.
F	Student family name	Mandatory	This value is defined using the Personal Information > Surname stored on the Profile tab of Student Profile and has a maximum length of 30 characters.
G	Student given name	Mandatory	This value is defined using the Personal Information > Given Name stored on the Profile tab of Student Profile and has a maximum length of 15 characters.
H	Student middle name	Optional	This value is defined using the Personal Information > Other Given Name stored on the Profile tab of Student Profile and has a maximum length of 15 characters.
I	Student third initial	Optional	This field has not been defined in Zunia
J	Certificate name	Optional	This field has not been defined in Zunia
K	Date of Birth	Mandatory	This value is defined using the Personal Information > Date of Birth stored on the Profile tab of Student Profile. This field has a format of DD/MM/YYYY and a maximum length of 10 characters.
L	Sex	Mandatory	This value is defined using the Personal Information > Gender stored on the Profile tab of Student Profile. The values of the Gender field are defined using the Gender lookup. This field has a maximum length of 1 character with a value of either: M for Male F for Female
M	Status	Mandatory	This value is defined using the Demographic > Country of Birth field on the School tab of Student Profile. The values of the Country of Birthfield has a maximum length of 1 character and value of either: Y for Yes for Australia and New Zealand N for No for any other country
N	Home address Line 1	Mandatory	This value is defined using the Addresses > Home Address stored on the Profile tab of Community Members.
O	Home address Line 2	Optional	This value is defined using the Addresses > Home Address > Address Line 2 stored on the Profile tab of Community Members.
P	Home suburb	Mandatory	This value is defined using the Addresses > Home Address > Suburb stored on the Profile tab of Community Members.
Q	Home state	Mandatory	This value is defined using the Addresses > Home Address > State stored on the Profile tab of Community Members. The values of the State field are defined using the State lookup.
R	Home postcode	Mandatory	This value is defined using the Addresses > Home Address > PostCode stored on the Profile tab of Community Members.
S	Home country	Optional	This value is defined using the Demographic > Country of Birth stored on the Profile tab of Student Profile. The values of the Country of Birth field are defined using the Country lookup.
T	Postal address Line 1	Optional	This value is defined using the Addresses > Postal Address stored on the Profile tab of Community Members.
U	Postal address Line 2	Optional	This value is defined using the Addresses > Postal Address > Address Line 2 stored on the Profile tab of Community Members.
V	Postal suburb	Mandatory	This value is defined using the Addresses > Postal Address > Suburb stored on the Profile tab of Community Members.
W	Postal state	Mandatory	This value is defined using the Addresses > Postal Address > State stored on the Profile tab of Community Members. The values of the State field are defined using the State lookup.
X	Postal postcode	Mandatory	This value is defined using the Addresses > Postal Address > PostCode stored on the Profile tab of Community Members.
Y	Postal country	Optional	This value is defined using the Adresses > Postal Address > Country stored on the Profile tab of Community Members.
Z	Academic year	Mandatory	This value is defined using the Year Level field on the School tab of Student Profile. The values of the Year Level field are defined using the Code field in the YearLevel lookup in School Configuration  > School Structure. This field has a value of either K, PP, 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11 or 12.
AA	Australian residency status	Mandatory	This value is defined using the Citizenship field on the International tab of Student Profile. The values of the Citizenshipfield has a maximum length of 1 character and value of either: Y for Yes for Australia and New Zealand N for No for any other country
AB	Student fee status	Mandatory	This value is defined using the most recent Student Type on Timeline Events on the School tab of Student Profile. The values of the Student Type field are defined using the Student Type lookup. Values can be: Y for required to pay full fees N for not required to pay full fees
AC	Home phone number	Optional	This value is defined using the Contact Details > Phones > Home Phone field stored on the Profile tab of Community Members.
AD	Alternate/mobile number	Optional	This value is defined using the Contact Details > Phones > Home Phone field stored on the Profile tab of Community Members.
AE	Email address	Optional	This value is defined using the Contact Details > Phones > Emails field stored on the Profile tab of Community Members.
AF	Fax number	Optional	This value has not been defined in Zunia
AG	Student's previous family name	Optional	This value has not been defined in Zunia
AH	Student's previous given name	Optional	This value has not been defined in Zunia
AI	Exemption from school	Optional	This value has not been defined in Zunia
AJ	Country of birth identifier	Optional, but mandatory if visa subclass supplied	This value is defined using the Demographic > Country of Birth stored on the Profile tab of Student Profile. The values of the Country of Birth field are defined using the Country lookup.
AK	Language spoken at home identifier	Optional	This value is defined using the Demographic > Home Language stored on the Profile tab of Student Profile. The values of the Home Language field are defined using the Language lookup.
AL	Proficiency of spoken English	Optional	This value has not been defined in Zunia
AM	Labour force identifier	Optional	This value has not been defined in Zunia
AN	Highest school level completed	Optional	This value has not been defined in Zunia
AO	Year highest school level completed	Optional	This value has not been defined in Zunia
AP	Prior education achievement 1	Optional	This value has not been defined in Zunia
AQ	Prior education achievement 2	Optional	This value has not been defined in Zunia
AR	Prior education achievement 3	Optional	This value has not been defined in Zunia
AS	Disability code 1	Optional	This value has not been defined in Zunia
AT	Disability code 2	Optional	This value has not been defined in Zunia
AU	Disability code 3	Optional	This value has not been defined in Zunia
AV	Disability code 4	Optional	This value has not been defined in Zunia
AW	Disability code 5	Optional	This value has not been defined in Zunia
AX	Disability code 6	Optional	This value has not been defined in Zunia
AY	Disability code 7	Optional	This value has not been defined in Zunia
AZ	Indigenous Status	Mandatory	This value is defined using the Indigenous Student and Torres Strait Islander fields on the Profile > Student Flags > Student tab of Student Profile. This field has a value of: 1 when the Indigenous Student field is selected 2 when the Torres Strait Islander field is selected 3 when both fields are selected 4 when neither field is selected 9 when the status is not-stated or unknown
BA	Date of Status	Mandatory	This field will always populate with today's (the day the report is run) date in DD/MM/YYYY format.
BB	Hours of community service	Optional	This value has not been defined in Zunia
BC	Visa Subclass	Optional	This value is defined using the Visa Subclass field on the Profile > International > Visa > Visa Subclass tab of Student Profile. Learn how to add passport and visa details to student profile
BD	Arrival Date	Optional, Mandatory if Visa Subclass is supplied	This value is defined using the Arrival date field from Profile > International > Visas > Arrival date of Student Profile.
BE	VET USI	Optional	This value has not been defined in Zunia
BF	Parent 1 school education	Optional Years K-9 Mandatory Years 10-12	This value is defined using the Highest Secondary Level field on the Education tab of the Parent Community Maintenance Record for Parent 1 (Main Student Contact). The values of the Highest Secondary Level field are defined using the Secondary Level lookup. Values for the highest level of secondary school education are: 0 when Not stated or Unknown 1 when Year 9 or equivalent or below 2 when Year 10 or equivalent 3 when Year 11 or equivalen 4 when Year 12 or equivalent
BG	Parent 1 non-school education	Optional Years K-9 Mandatory Years 10-12	This value is defined using the Highest Qualification Level field on the Education tab of the Parent Community Maintenance Record for Parent 1 (Main Student Contact). The values of the Highest Qualification Level field are defined using the Qualification Level lookup. Values for the qualifications are: 0 when Not stated or Unknown 5 when Certificate I to IV (including trades) 6 when Diploma or Advanced Diploma 7 when Bachelor Degree or higher 8 when No non-school education
BH	Parent 1 occupation	Optional Years K-9 Mandatory Years 10-12	This value is defined using the Position Category field on the Occupation tab of the Parent Community Maintenance Record for Parent 1 (Main Student Contact). The values of the Occupation Position field are defined using the Occupation Position lookup and has a maximum field length of 1 character. Values for parent occupations are: 1 when Senior management 2 when Other business manager 3 when Tradesperson, clerk, sales and service staff 4 when Machine operators, hospitality staff, assistants, labourers and related workers 8 when Not in paid work 9 when Not stated or unknown
BI	Parent 1 Main language other than English spoken at home	Optional Years K-9 Mandatory Years 10-12	This value is defined using the Home Language field on the Profile > Demographic tab of the Parent Community Maintenance Record for Parent 1 (Main Sudent Contact). The values of the Home Language field are defined using the Language lookup.
BJ	Parent 2 school education	Optional Years K-9 Mandatory Years 10-12	This value is defined using the Highest Secondary Level field on the Education tab of the Parent Community Maintenance Record for Parent 2 (Secondary Student Contact). The values of the Highest Secondary Level field are defined using the Secondary Level lookup. Values for the highest level of secondary school education are: 0 when Not stated or Unknown 1 when Year 9 or equivalent or below 2 when Year 10 or equivalent 3 when Year 11 or equivalent 4 when Year 12 or equivalent
BK	Parent 2 non-school education	Optional Years K-9 Mandatory Years 10-12	This value is defined using the Highest Qualification Level field on the Education tab of the Parent Community Maintenance Record for Parent 2 (Secondary School Contact). The values of the Highest Qualification Level field are defined using the Qualification Level lookup. Values for the qualifications are 0 when Not stated or Unknown 5 when Certificate I to IV (including trades) 6 when Diploma or Advanced Diploma 7 when Bachelor Degree or higher 8 when No non-school education
BL	Parent 2 occupation	Optional Years K-9 Mandatory Years 10-12	This value is defined using the Position Category field on the Occupation tab of the Parent Community Maintenance Record for Parent 2 (Secondary Student Contact). The values of the Occupation Position field are defined using the Occupation Position lookup and has a maximum field length of 1 character. Values for parent occupations are: 1 when Senior management 2 when Other business manager 3 when Tradesperson, clerk, sales and service staff 4 when Machine operators, hospitality staff, assistants, labourers and related workers 8 when Not in paid work 9 when Not stated or unknown
BM	Parent 2 Main language other than English spoken at home	Optional Years K-9 Mandatory Years 10-12	This value is defined using the Home Language field on the Profile > Demographic tab of the Parent Community Maintenance Record for Parent 2 (Secondary Student Contact). The values of the Home Language field are defined using the Language lookup.
BN	Class identification	Optional Years 7-12 Mandatory Years K-6	This field is defined using the Roll Group drop-down list on the Status sub-tab of the School tab of Student Profile. The values of the Roll Group field are defined in School Structure > Roll Group tab of School Configuration.
BO	Brightpath project student	Mandatory	This value has not been defined in Zunia and will need to be entered manually as required before submitting report.
BP	ABLE WA project student	Mandatory	This value has not been defined in Zunia and will need to be entered manually as required before submitting report.

Tips

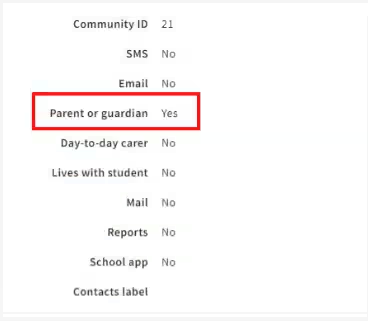

Columns BF -> BM. (Parent 1 and Parent 2 data). If parent data is not appearing as expected check that the 'Parent or guardian' flag is ticked in Student Profile -> Current Students -> Contacts Tab.

If a student has no Parent 2 data (student has only one contact) the P2 fields still need to be populated with a not stated/unknown value.

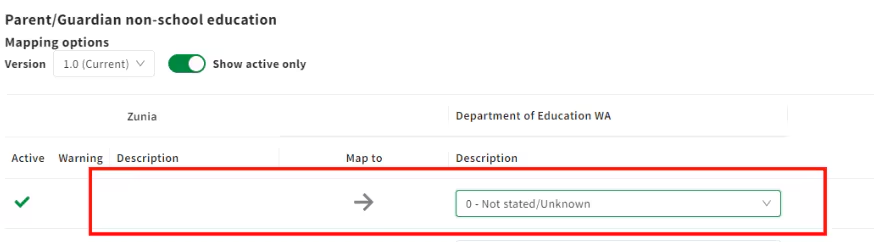

To configure this ensure blank codes are mapped to Not Stated in data mapping settings for Parent/Guardian school education, Parent/Guardian occupation, Parent/Guardian non school education and language background.
